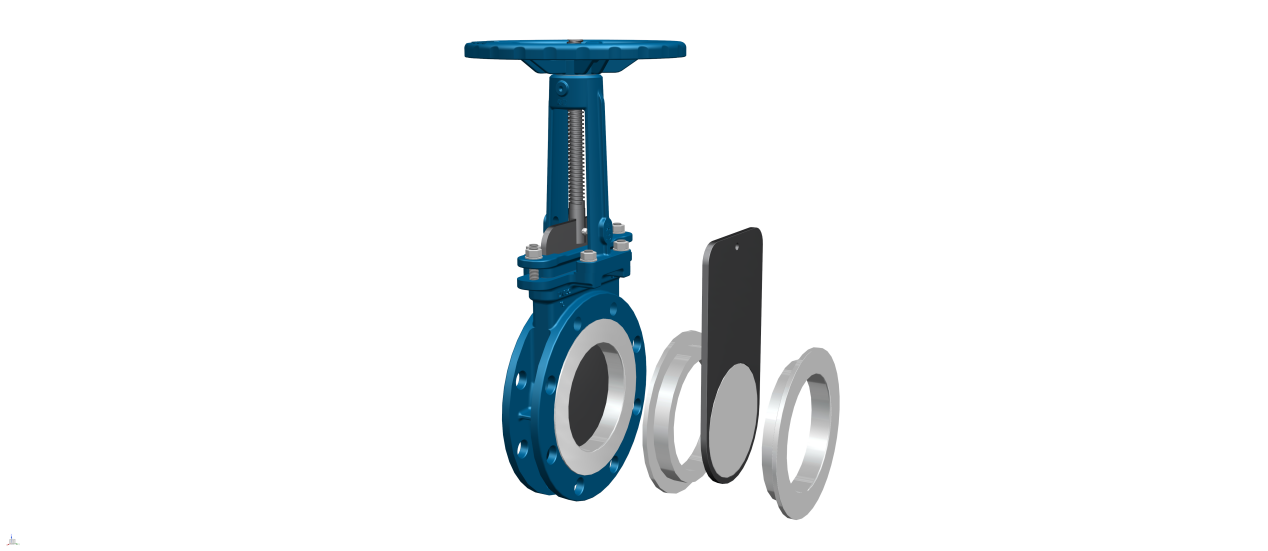

陶瓷刀型閘閥PZ73TC
陶瓷刀型閘閥
PZ73TC
■ 產品概述
陶瓷閥門適用于高硬度的顆粒例如(灰渣水，煤粉)等介質，或有軟顆粒但又有腐蝕性的介質的管道上作啟閉之用。密封面采用高檔增韌結構工業陶瓷，其化學穩定性及硬度極高，并具有極高的耐磨損、耐腐蝕、耐沖蝕性能，且隔熱性好、熱膨脹小，機械強度高，啟動負荷小，卡灰及結灰現象少，使用壽命長等優點。實心的閥體設計可避免因介質高速沖刷導致的閥體穿孔及外漏等。
Ceramic knife gate valve
PZ73TC
■Overview of Products
Ceramic valves are suitable for opening and closing of pipes with high hardness particles, such as ash, slag water, pulverized coal, or soft particles but corrosive media. The sealing surface is made of high-grade toughened industrial ceramics. Its chemical stability and hardness are very high. It has high wear resistance, corrosion resistance and erosion resistance. It also has good thermal insulation, small thermal expansion, high mechanical strength, low starting load, less ash jamming and ash deposit, and long service life Advantage.The solid valve body design can avoid valve body perforation and leakage caused by high-speed medium erosion.
|
成型工藝 |
氧化鋁95陶瓷 主要化學成分含量 |
|||
|
等靜壓 |
Zr02: 94.6% Y203: 4.7-5% R0:0.4-0.7% |
|||
|
陶瓷性能參數 |
||||
|
體積密度g/cm3 |
抗折強度(Mpa) |
抗壓強度 (Mpa) |
抗拉強度 (Mpa) |
平均線膨脹系數 |
|
6.02g/cm |
998 |
2100 |
400 |
10.5x10/C |
|
配套閥門參數 |
||||
|
主體材質 |
QT450、WCB、CF8、CF3M、2205 |
|||
|
公稱通徑 |
DN50-DN1000 |
|||
|
適用溫度 |
-29~+350℃ |
|||
|
操作方式 |
手動、電動、齒輪箱、氣動、手氣動、液動、電液動、鏈輪、杠桿 |
|||
|
適用介質 |
紙漿、污水、煤漿、灰、顆粒、粉塵、渣水混合物 |
|||
